Mastering Your LiftMaster CSW24UL Commercial Swing Gate Operator: Installation, Maintenance, and Troubleshooting
As a Master Garage Door Technician, my expertise extends beyond just garage doors to encompass a wide range of access control systems, including robust commercial gate operators like the LiftMaster CSW24UL. These powerful units are the backbone of secure, efficient entry points for many businesses, ranches, and industrial facilities, often found alongside critical infrastructure like cattle guards, as seen in the field photo. Understanding their installation, maintenance, and troubleshooting is crucial for optimal performance and safety.
The LiftMaster CSW24UL is a heavy-duty commercial swing gate operator designed for high-cycle, continuous-duty applications, offering unparalleled reliability and security. Its advanced features, including battery backup and robust construction, ensure seamless operation even in demanding environments, making it a top choice for managing access to large properties and critical entry points.
Understanding the LiftMaster CSW24UL Commercial Swing Gate Operator
The LiftMaster CSW24UL is not just any gate opener; it’s engineered for extreme performance. This 24VDC swing gate operator is ideal for gates up to 18 feet long or weighing up to 1,600 pounds, making it perfect for the demanding requirements of commercial and industrial settings. Its design prioritizes durability, security, and efficiency, offering features that stand up to heavy usage and harsh weather conditions.
Key Features and Benefits
- Heavy-Duty Construction: Built to withstand the rigors of high-cycle commercial use.
- Continuous Duty Operation: Designed for constant use without overheating or performance degradation.
- Battery Backup: Ensures the gate remains operational during power outages, a critical security feature.
- MyQ Technology: Allows for secure monitoring and control from anywhere via a smartphone or computer.
- Security+ 2.0: Advanced encryption technology to prevent code theft and ensure secure access.
- P3 Motor: Provides reliable performance and extended lifespan.
- Safety Reversing Sensor: Automatically reverses the gate if an obstruction is detected, enhancing safety.
Installation Considerations for Commercial Gate Operators

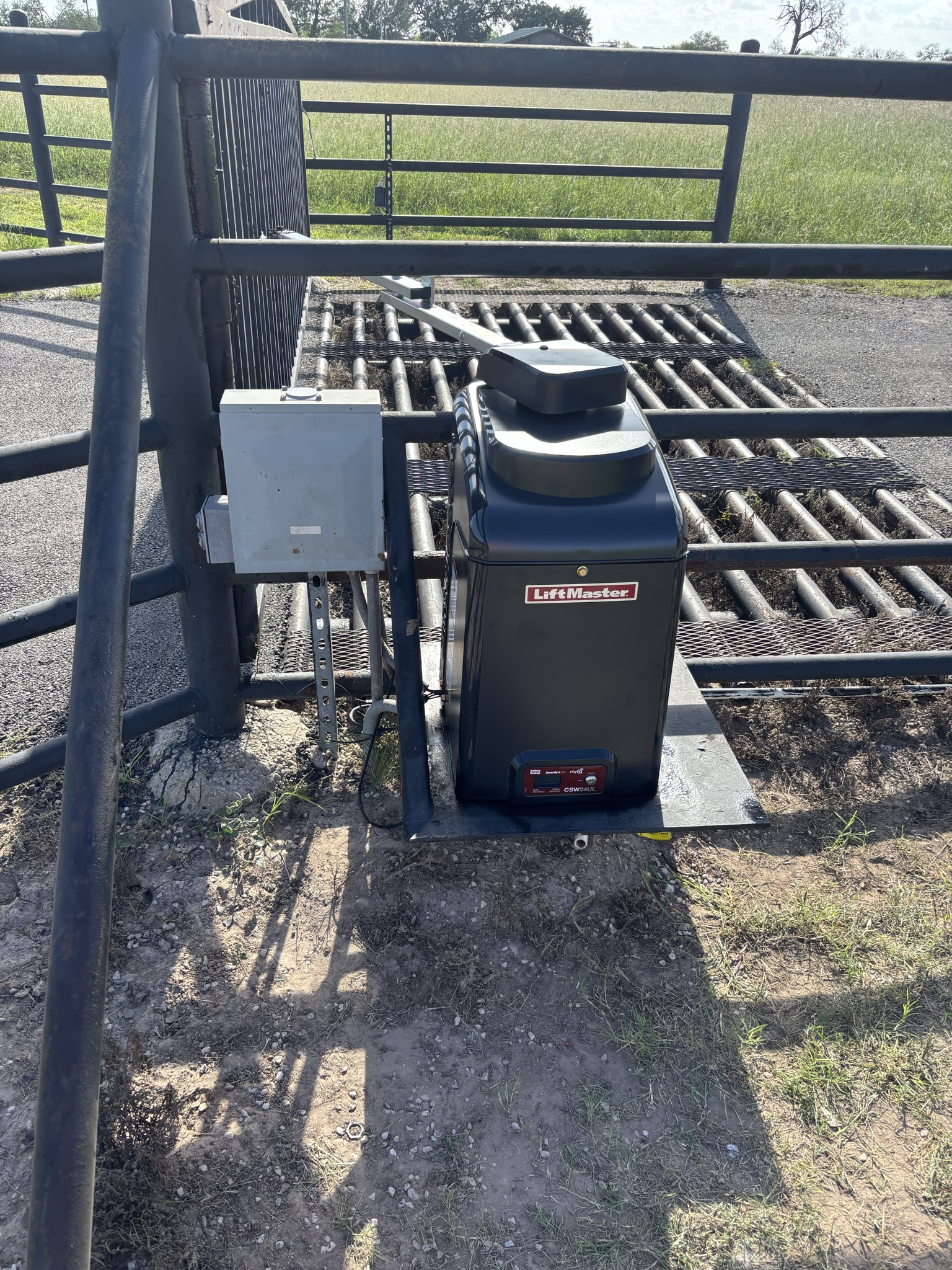

Proper installation is paramount for the longevity and safe operation of a commercial gate operator. Unlike residential units, commercial installations often involve heavier gates, more complex wiring, and integration with various access control devices (keypads, card readers, loop detectors, safety photo eyes). The image provided showcases a typical robust installation, with the operator securely mounted on a sturdy base, positioned strategically next to a cattle guard and the main gate structure.
Integrating with Cattle Guards and Access Control
When a gate operator is installed in conjunction with a cattle guard, as seen in the photo, it’s usually at a primary entrance to a property where livestock might be present. The gate provides security and prevents unauthorized vehicle access, while the cattle guard deters livestock from crossing. The gate operator ensures automated, controlled entry and exit, often integrated with a sophisticated access control system to manage who can enter and when.
Maintaining Your CSW24UL Gate Operator
Regular maintenance is crucial for preventing costly breakdowns and ensuring the continuous, safe operation of your LiftMaster CSW24UL. Commercial gate operators endure significant wear and tear, making a proactive maintenance schedule essential.
Troubleshooting Common Issues
Even the most robust systems can encounter issues. Here’s a quick guide to common problems and their potential causes:
| Cause | Solution |
|---|---|
| Power Interruption | Check circuit breaker, power supply, and battery backup status. |
| Obstruction Detected | Clear any debris from the gate’s path or photo eye sensors. |
| Remote Control/Access Device Failure | Replace batteries in remotes, check wiring for keypads/readers, reprogram devices. |
| Misaligned Photo Eyes | Ensure sensors are clean and perfectly aligned. |
| Mechanical Binding/Friction | Inspect gate hinges, wheels, and tracks for damage or lack of lubrication. |
| Motor/Gearbox Issues | Listen for unusual noises; this often indicates internal wear. |
Bulleted Troubleshooting List
- Check Power: Verify the operator has power. Look for indicator lights on the control board.
- Inspect Safety Sensors: Ensure photo eyes are clear, clean, and aligned. A common cause of non-operation.
- Test Remote/Keypad: Try a different remote or access method to rule out device failure.
- Manual Operation: Disengage the operator and try to move the gate manually. If it’s stiff, there’s a mechanical issue.
- Listen for Sounds: Unusual grinding, clicking, or humming can point to motor or gearbox problems.
- Examine Wiring: Look for frayed, disconnected, or chewed wires, especially for external devices.
Why Professional Service is Essential
CRITICAL SAFETY RULE: Never attempt DIY repairs on commercial gate operators, especially those involving electrical components, heavy gate panels, or internal mechanical parts. These systems operate under significant power and can involve extremely heavy gates, posing severe risks of electrical shock, crushing injuries, or even death. Always contact a certified professional technician for any service, repair, or complex troubleshooting.
While basic troubleshooting can help identify issues, the complexity and power of commercial gate operators demand professional attention for repairs and maintenance. A certified technician has the specialized tools, knowledge, and experience to safely diagnose and fix problems, ensuring your system operates reliably and compliantly with all safety standards. From adjusting limit switches to replacing motor components or integrating new access control features, a professional ensures the job is done right and safely.
Investing in professional installation and regular maintenance for your LiftMaster CSW24UL is an investment in the security and efficiency of your property. Don’t compromise on safety or performance – trust the experts.
